200W Flexible Solar Panel
video
200W Flexible Solar Panel

200W Flexible Solar Panel

Products Features:200W flexible solar panel is the perfect choice. With its advanced features and unbeatable performance, it's the smart and sustainable choice for all your energy needs.

Introduction:

200W flexible solar panels are devices that convert sunlight into electrical energy. They have a power output of 200 watts (W) and are flexible and can be bent or curled to fit different installation surfaces and shapes.



Products Features:

1. Flexibility: The most notable feature is its flexible design, which can be bent, curled, or even folded, which allows it to adapt to various installation environments with uneven or curved surfaces, such as car roofs, tents, backpacks, sails, etc. This flexibility greatly broadens the range of applications for solar panels.
2. Portability: Due to the use of lighter materials and structural design, flexible solar panels are generally lighter than rigid solar panels of the same power. This makes it more advantageous in application scenarios that require portability or mobility (such as camping, hiking, maritime navigation, etc.).
3. Efficiency: Despite their flexibility, modern flexible solar panels are still able to maintain high photoelectric conversion efficiency. This means they can effectively convert sunlight into electricity, providing reliable power support for a variety of devices.
4. Durability: Flexible solar panels usually use high-quality materials and advanced manufacturing processes, and have good weather resistance and anti-aging properties. They can operate stably for a long time in various harsh environments (such as high temperature, low temperature, humidity, wind, sand, etc.) and are not easily damaged. This solar panel comes with an IP67-rated waterproof junction box and solar connector. It can withstand heavy snow loads up to 5400 Pa and high winds up to 2400 Pa.
5. Easy to Install And Maintain: The installation process of flexible solar panels is relatively simple and fast, without the need for complicated fixing brackets and installation tools. In addition, due to its lightness and flexibility, it also facilitates daily maintenance and cleaning work.



Application:

1. Balcony: Due to its lightness, bendability, and installation characteristics, 200W flexible solar panels are very suitable for installation in places with limited space or irregular shapes such as balconies, providing a green and sustainable energy supply for families.
2. Roof: Although more common in high-power solar systems, small flexible solar panels can also be used as supplementary energy in some roof areas, especially when it is not convenient to install traditional rigid solar panels.
3. RV: For RV enthusiasts, 200W flexible solar panels are an ideal energy solution. They can be easily installed on the roof or side to provide power support for electrical equipment in the RV.
4. Boats and Yachts: In the marine environment, flexible solar panels can resist a certain degree of vibration and bending, and are ideal solar power generation equipment on boats and yachts. They can be used to power navigation systems, lighting systems, and other electrical equipment.



ELECTRICAL CHARACTERISTICS
STC HMN-200-EWAS
Maximum Power (Pmax) 200W
Maximum Power Voltage(Vmp) 27.7V
Maximum Power Current(Imp) 7.23A
Open-circuit Voltage(Voc) 33.5V
Short-circuit Current(Isc) 7.62A
Module Efficiency(%) 19.09%
Operating Temperature -40 ℃ to 85 ℃
Maximum System Voltage 600VDC
Maximum Series Fuse Rating 15A
Application Class Class A
P ower Toleran ce 0~+5 W
STC:Irradiance 1000W/m² , module temperature 25℃ , AM=1.5

MECHANICAL CHARACTERISTICS

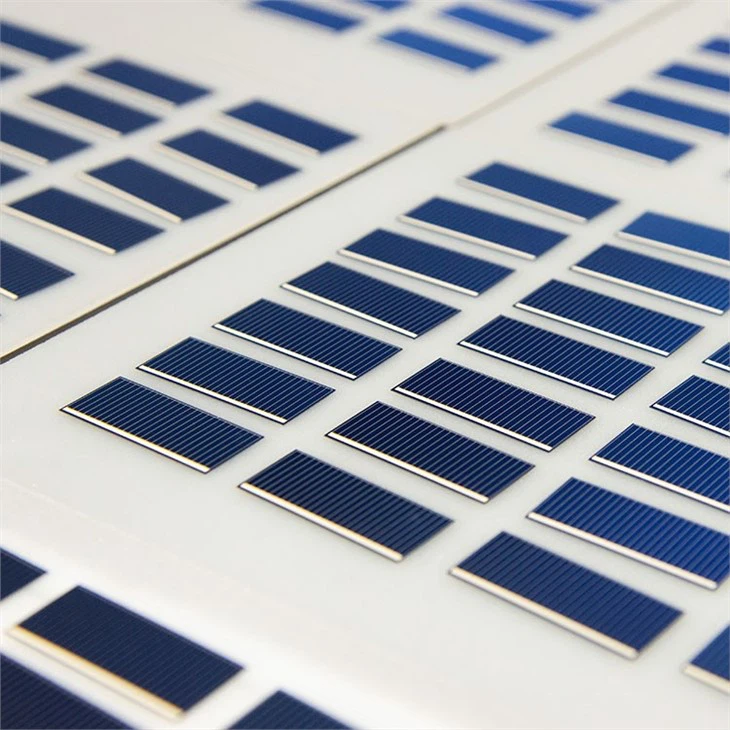

Solar Cell Monocrystalline sillicon cell
No. of cells 200
Module Dimensions L:1564*W:670*H:18 mm
Weight 3.5kg
Backsheet White PV Backsheet
J-Box IP 67 rated
Output cables 4mm²
Cable length (+)/(-) 300mm
Connector MC4 compatible

TEMPERATURE CHARACTERISTICS
NOCT(NominalOperatingCellTemperature) 41 ± 2℃
Temperature Coefficient of ISC -0.38%/℃
Temperature Coefficient of Voc(β) -0.28%/℃
Temperature Coefficient of Pmpp(γ) 0.020%/℃

Packaging
Pieces per pallet 35
Container 40'HQ
Pieces per container 1470
